WP435A HC-276 Diaphragm Flush Mount Pressure Transmitter

Short Description:

WP435A Flush Mount Pressure Transmitter adopts flat diaphragm as the sensor’s wetted part. It’s non-cavity structure prevents medium from being trapped in blind zone. The ANSI flange connection provides a standardized, reliable, and leak-proof interface for easy installation and integration into the process system. The diaphragm can be made of hastelloy C alloy that can offer exceptional performance in hostile environments, including exposure to strong acids, chlorides, hypochlorites, and various corrosive chemicals.

Send email to us

Product Detail

Product Tags

Application

WP435A Flush Mount Pressure Transmitter is designed for pressure measurement in various sanitary requiring fields:

✦ Petrochemical Plant
✦ Oil Mill
✦ Biomedicine
✦ Coatings & Dyes
✦ Fibers & Textiles
✦ Cosmetic
✦ Soft Drink Canning
✦ Milk Processing

Feature

Flush mount pressure transmitter

Hastelloy C-276 Diaphragm of sensor

4~20mA + HART Intelligent Output

Excellent protection in challenging conditions

ANSI flange connection

Integrated indicator LCD/LED

Explosion protection flameproof

Ideal for industries with high hygiene requirement

Description

WP435A Flush mount Pressure Transmitter is specially designed for clean operation in harsh applications. ANSI standard flange connection is used for installation on the process. The flat sensing diaphragm is made of Hastelloy C-276 to ensure measurement reliability when handling aggressive medium such as sulfuric acid, phosphoric acid and chlorine-containing solutions.

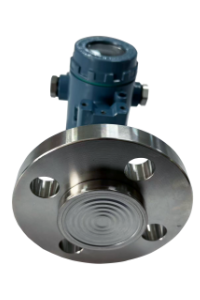

WP435A Non-cavity Pressure Transmitter Hastelloy C-276 Diaphragm

Specification

Item name	HC Diaphragm Flush Mount Pressure Transmitter
Model	WP435A
Measuring range	0－-10～ -100kPa, 0－10kPa~100MPa.
Accuracy	0.1%FS; 0.2%FS; 0.5 %FS
Pressure type	Gauge pressure(G), Absolute pressure(A),Sealed pressure(S), Negative pressure (N).
Process connection	ANSI 1" Flange, Tri-clamp, M27x2, G1”, Customized
Electrical connection	Terminal block cable entry M20x1.5(F), Customized
Output signal	4~20mA; 4~20mA + HART; Modbus RS-485, Customized
Power supply	24VDC; 220VAC, 50Hz
Compensation temperature	-10～70℃
Medium temperature	-40~60℃
Medium	Hygienic demanding or sticky liquid and fluid
Explosion-proof	Intrinsically safe; Flame proof
Housing material	Aluminium alloy
Diaphragm material	Hastelloy C-276, SS316L, Tantalum, Customized
Indicator (local display )	LCD, LED, Smart LCD
Overload	150%FS
Stability	0.5%FS/ year
If you need more information about Flush Mount Pressure Transmitter, do not hesitate to contact us.
