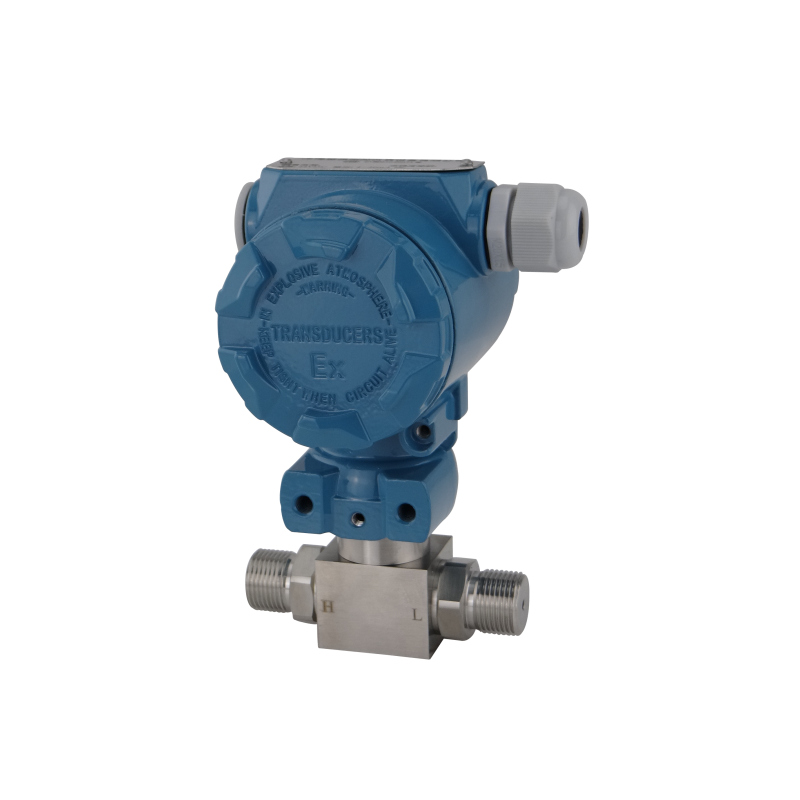

WP201C China Factory Wind Gas Liquid Differential Pressure Transmitter
WP201C
This Gas Liquid differential pressure transmitter can be used to measure and control pressure for various industries, including Petroleum and chemical industry, Electric power, water & waste water supply, Oil & Gas and other automatic control industries.
The WP201C differential pressure transmitter adopts imported high-precision and high-stability sensor chips, adopts unique stress isolation technology, and undergoes precise temperature compensation and high-stability amplification processing to convert the differential pressure signal of the measured medium into 4-20mADC standards Signal output. High-quality sensors, sophisticated packaging technology and perfect assembly process ensure the excellent quality and best performance of the product.
WP201C can be equipped with an integrated indicator, the differential pressure value can be displayed on site, and the zero point and range can be continuously adjusted. This product is widely used in furnace pressure, smoke and dust control, fans, air conditioners and other places for pressure and flow detection and control. This type of transmitter can also be used for measuring gauge pressure (negative pressure) via connecting one port.
Compact and robust construction design
Imported high stability & reliability sensor component
Various signal outputs, HART protocol is available
Light weight, easy to install, maintenance-free
High precision 0.1%FS, 0.2%FS, 0.5%FS
Explosion-proof type: Ex iaIICT4, Ex dIICT6
Suitable for all-weather harsh environments
Suitable for measuring a variety of corrosive medium
100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
| Name | Gas Liquid Differential Pressure Transmitter |
||
| Model | WP201C |
||
| Pressure range | 0 to 1kPa ~3.5MPa | ||
| Pressure type | Differential pressure | ||
| Max. static pressure | 100kPa, 2MPa,5MPa, up to 10MPa |
||
| Accuracy | 0.1%FS; 0.2%FS; 0.5 %FS | ||
| Process connection | G1/2”, M20*1.5, 1/2”NPT M, 1/2”NPT F, Customized | ||
| Electrical connection | Terminal block 2 x M20x1.5 F | ||
| Output signal | 4-20mA 2wire; 4-20mA + HART; RS485; 0-5V; 0-10V | ||
| Power supply | 24V DC | ||
| Compensation temperature | -20～70℃ |
||
| Operation temperature | -40～85℃ |
||
| Explosion-proof | Intrinsically safe Ex iaIICT4; Flameproof safe Ex dIICT6 | ||
| Material | Shell: Aluminium alloy | ||
| Wetted part: SUS304/ SUS316 | |||
| Medium | Gas or liquid compatible with 304 stainless steel |
||
| Indicator (local display ) | LCD, LED, 0-100% linear meter | ||
