WP401A Exd Flameproof Housing Custom Thread Digital Pressure Transmitter

Short Description:

WP401A Exd Digital Pressure Transmitter is a explosion-protected standard 4~20mA output gauge pressure transmitter integrated with LCD display providing onsite reading. The blue aluminum terminal box consists of transmission & amplification circuit board and terminal block for electrical connection. The overall structure can be made flameproof with stainless steel conduit plug to ensure maximum safety for operation in hazardous conditions.

Send email to us

Product Detail

Product Tags

Application

WP401A Flame Proof Pressure Transmitter can be used to measure & control gauge, absolute, negative or sealed pressure in a variety of sectors:

✦ Petroleum Refining
✦ Oleochemical
✦ Machinery Manufacturing
✦ Water Treatment
✦ Waste Incineration
✦ Hydrogen Energy
✦ Fertilizer Plant
✦ Gas Storage Facility

Feature

Excellent high performance sensor

Explosion resistant housing design

Quick and handy installation

Safe operation in hazardous area

Customizable parameters and dimension

Configurable multi-function display

Description

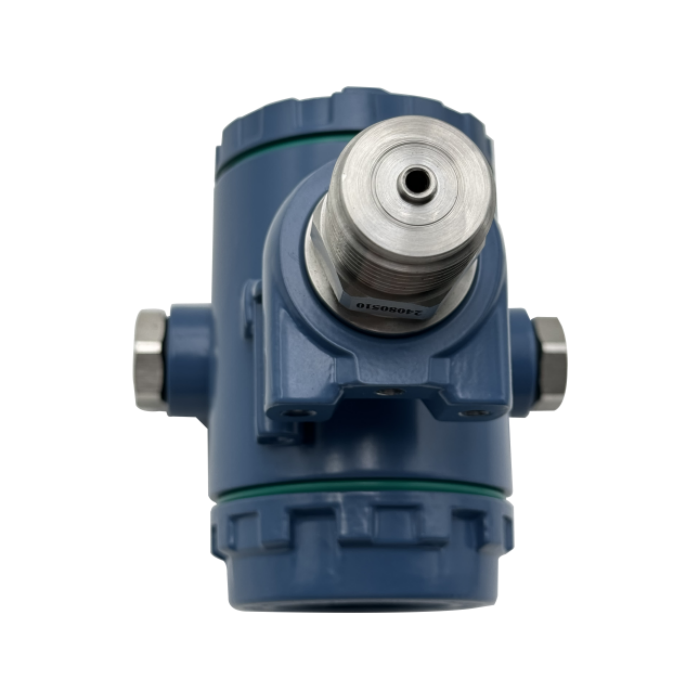

WP401A Flameproof Design Stainless Steel Plugs M27-2 Process Thread Air Pressure Transmitter

WP401A Flame Proof Pressure Transmitter adopts Ex dbIICT6 Gb explosion proof structure and components complying with GB/T 3836. The transmitter is ideal for applications in aggressive sectors. Connection approach can be customized to exactly match with on-site measured process.

Specification

Item name	Flameproof type Custom Connection Pressure Transmitter
Model	WP401A
Measuring range	0—(± 0.1～±100)kPa, 0 — 50Pa～1200MPa
Accuracy	0.1%FS; 0.2%FS; 0.5 %FS
Pressure type	Gauge; Absolute; Sealed; Negative
Process connection	M272 G1/2”, M201.5, 1/4“NPT, Flange, Customized
Electrical connection	Terminal block cable gland
Output signal	4-20mA(1-5V); Modbus RS-485; HART Protocol; 0-10mA(0-5V); 0-20mA(0-10V)
Power supply	24VDC; 220VAC, 50Hz
Compensation temperature	-10～70℃
Operating temperature	-40～85℃
Explosion-proof	Intrinsically safe Ex iaIICT4 Ga; Flame-proof Ex dbIICT6 Gb
Material	Shell: Aluminium alloy
	Wetted part: SS304/316L; PTFE; Tantalum; Hastelloy C-276; Monel, Customized
Medium	Liquid, gas, fluid
Field Display	LCD, LED, Intelligent LCD
Maximum pressure	Measurement upper limit	Overload	Long term stability
	<50kPa	2~5 times	<0.5%FS/year
	≥50kPa	1.5~3 times	<0.2%FS/year
Note: When range <1kPa, only no corrosion or weak corrosive gas can be measured.
For more information about WP401A Custom Flame Proof Pressure Transmitter, please feel free to contact us.
