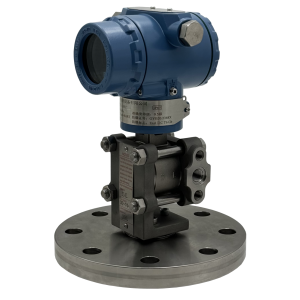

WP3051LT In-line Flange Mounting DP Level Transmitter
WP3051LT Differential Pressure Level Transmitter can be used for measurement of hydrostatic pressure and medium level on a variety of processes:
- ✦ Filter Control System
- ✦ Surface Condenser
- ✦ Chemical Storage Tank
- ✦ Chemical Production
- ✦ Water Drainage
- ✦ Sewage Treatment
- ✦ Vessel Ballast Tank
- ✦ Beverage Manufacturing
DP-based WP3051LT level transmitter is designed to have 2 pressure sensing ports. The high pressure side utilizes in-line flange installation diaphragm seal, while the low pressure side is threaded to impulse line connection. Configured intelligent LCD display integrates a variety of functions including range adjustment for HART output model. Flame proof structural design provide protection for safe operations in explosive environments.
Differential pressure-based measurement mechanism
In-line flange mounting diaphragm seal system
Cutting edge electronics parts, high accuracy class
Customizable diaphragm material for harsh medium
Hart protocol available, feasible LCD setting
Industrial 24V DC supply & 4-20mA DC output
| Item name | In-line Flange Mounting Diaphragm Seal Level Transmitter |
| Model | WP3051LT |
| Measuring range | 0~2068kPa |
| Power supply | 24VDC(12-36V); 220VAC, 50Hz |
| Output signal | 4-20mA(1-5V); HART Protocol ; 0-10mA(0-5V); 0-20mA(0-10V) |
| Span and zero point | Adjustable |
| Accuracy | 0.075%FS, 0.1%FS, 0.2%FS, 0.5%FS |
| Indicator (local display ) | LCD, LED, Smart LCD |
| Process connection | Top-down/Side flange installation |
| Electrical connection | Terminal block cable gland M20x1.5,1/2”NPT, Customized |
| Diaphragm material | SS316L, Monel, Hastelloy C, Tantalum, Customized |
| Explosion-proof | Intrinsically safe Ex iaIICT6 Gb; Flame-proof Ex dbIICT6 Gb |
| For more information about WP3051LT DP Level Transmitter please feel free to contact us. | |
