WBZP Accurate HART Output Flameproof Temperature Transmitter

Short Description:

WBZP Smart Temperature Transmitter uses Pt100 sensor chip to trace variation in process temperature. The amplifier circuit component then transfers resistance signal into standard analog or smart digital output. Thermowell can be used to provide additional physical protection for insert probe against harsh conditions. Solid housing structure of flameproof terminal box ensures isolation of explosion and prevention of flame spread.

Send email to us

Product Detail

Product Tags

Application

WBZP Digital Temperature Transmitter is an intelligent temperature measuring device for various industrial processes:

✦ Furnace Heating
✦ Coating System
✦ Electric Motor
✦ Injection Molder
✦ Gas Turbine
✦ Pasteurizer
✦ Combustion Engine
✦ Hydraulic Power Unit

Description

WBZP Smart Temperature Transmitter can output both 4~20mA and HART protocol signal ensuring optimal reading accuracy of display and transmission. The upper terminal box can apply model 3051 with on-site intelligent LCD indicator. Sturdy housing and sealing of metal plug enable the transmitter to meet the requirement of flame-proof protection. Thermowell encasing the insertion part of stem isolates the sensing probe physically from process medium while accurate transfer of heat is still assured. Sensor protection is enhanced against corrosion, contamination and physical damage.

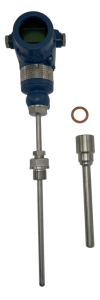

WBZP High Accuracy Smart Temperature Transmitter Thermowell Protection

Feature

Pt100 class A excellent temperature sensing element

High Accuracy of reading display and signal transmission

Measurement ranging from -200℃ to 600℃

Analog 4~20mA and HART communication signal

Smart on-site LCD indicator configurable

Use of thermowell for harsh applications

Specification

Item name	Accurate HART Output Flameproof Temperature Transmitter
Model	WBZP
Sensing element	RTD Pt100
Temperature range	-200~600℃
Sensor quantity	Single or duplex elements
Output signal	4~20mA+HART, 4~20mA, RS485
Power supply	24V(12-36V)DC; 220VAC
Medium	Liquid, Gas, Fluid
Process connection	Thread/Flange; Movable thread/flange; Ferrule thread; Plain stem (no fixture); Customized
Terminal box	Type3051, type 2088, type 402A, type 501, Cylindrical, etc.
Stem diameter	Φ6mm, Φ8mm Φ10mm, Φ12mm, Φ16mm, Φ20mm
Display	Smart LCD, LCD, LED, LED with 2-relay
Ex-proof type	Flame proof Ex dbIICT6 Gb
Wetted-part material	SS304/316L, PTFE, Hastelloy C, Alundum, Customized
For more information about WBZP Smart Temperature Transmitter please feel free to contact us.
