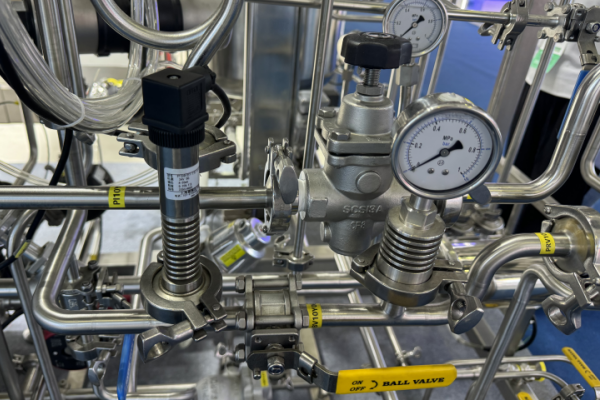

In the world of industrial automation and process control, accurate pressure measurement is one of the crucial aspects for ensuring operating efficiency and safety. Traditionally, pressure gauges have been the favorite devices for measuring pressure in various industries. However, with progress in instrumentation technology, pressure transmitters have emerged as a superior alternative. Let’s explore what kind of benefit can be expected to control automation if pressure gauge on existing process would be replaced with transmitter.

Understanding Gauge and Transmitter

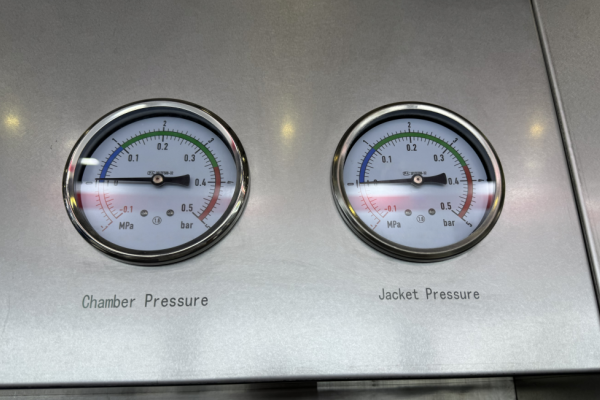

Pressure Gauge: A pressure gauge usually refers to a mechanical device consists of a dial to indicate the pressure reading, which is derived from the deformation of sensing element, such as a Bourdon tube or diaphragm. Pressure gauges are widely used due to their simplicity, low cost, and ease of installation. Still, they have their own limitations in terms of accuracy, range, and functionality and no data transmission capabilities.
Pressure Transmitter: On the other hand a pressure transmitter is an electronic device that converts pressure measurement into electrical signal, which can be transmitted to a control system and digital display. Transmitters often utilize advanced sensing technologies, such as piezoelectric or capacitance sensors, to provide highly accurate and reliable measurements. They can also offer features such as digital communication protocols, remote monitoring, and integration with other process control systems.

Benefits of Replacing Pressure Gauge with Transmitter
Increased accuracy class: One of the most significant advantages of pressure transmitters over gauges is their superior accuracy. Transmitters can achieve measurement precision of up to ±0.1% of full scale, while traditional gauges generally have accuracy around ±1.6% to ±2.5%. The increased precision is essential in processes requiring stringent pressure regulation.
Enhanced span and flexibility: Pressure transmitters can be designed to measure a wider range of pressures compared to gauges. This flexibility allows them to be used in various applications, from micro-pressure systems to extreme-pressure environments. Additionally, transmitters can be calibrated for specific ranges, ensuring optimal performance in diverse operational conditions.
Data transmission for remote monitoring: Unlike pressure gauges who typically provide local readings, pressure transmitters can transmit data to remote monitoring systems which allows operators to monitor pressure levels in real-time from central control room or even via mobile devices. The ability to access data remotely enhances decision-making and proactive maintenance, reducing the risk of process failure.
Integration with control system: Pressure transmitters can easily integrate with modern process control systems, such as Distributed Control System (DCS) or Supervisory Control and Data Acquisition (SCADA) system. The integration facilitates automated control of processes based on pressure readings, improves overall efficiency and reduces the likelihood of human error.
Improved safety: In many industrial applications, accurate pressure measurement is critical for operational safety. Pressure transmitters can provide continuous monitoring and relay switches to alert operators to any abnormal pressure conditions, enabling timely interventions. The function is particularly important in hazardous environments, where pressure fluctuations can lead to dangerous situations.
Reduced maintenance and downtime: Pressure gauges could be prone to wear and tear that leads to performance loss and more frequent calibration or replacement. In contrast, pressure transmitters generally have more robust design and require less maintenance. The excellence in resilience can be translated to reduced downtime and lower operational costs over time.
Advanced features: Many modern pressure transmitters come equipped with advanced functions to optimize performance and user experience such as temperature compensation, digital displays, and diagnostic capabilities. These features enhance the overall functionality of the device and provide valuable insights into the performance of the system.
Summary
Upgrading from a pressure gauge to a pressure transmitter can lead to significant improvements in accuracy, flexibility, safety, and overall process efficiency. While pressure gauges have served their purpose well in various applications, the technological advancements offered by pressure transmitters make them a excellent choice for modern industrial processes. Shanghai Wangyuan has been engaged in manufacturing and service of pressure measuring devices for over 20 years. Ample professional knowledge and field experience allow us to deliver felicitous pressure control solutions. Please don't hesitate to contact us if we can be of further assistance with your requirements on pressure gauges and transmitters.
