The measurement of liquid level is a vital aspect in various industries such as manufacturing, chemical, and oil & gas. Precise level measurement is essential for process control, inventory management, and environmental safety. One of the most practical methods for liquid level measurement is using a pressure sensor or pressure transmitter.
A pressure transmitter can be used to establish the liquid level in a river, tank, well, or other body of liquid. It works on the principle of hydrostatic pressure, which is the pressure exerted by a stationary fluid due to the force of gravity. When a pressure sensor is installed at the bottom of a tank or other liquid-containing vessel, it measures the pressure exerted by the liquid above it. This pressure reading can then be used to accurately determine the level of the liquid.

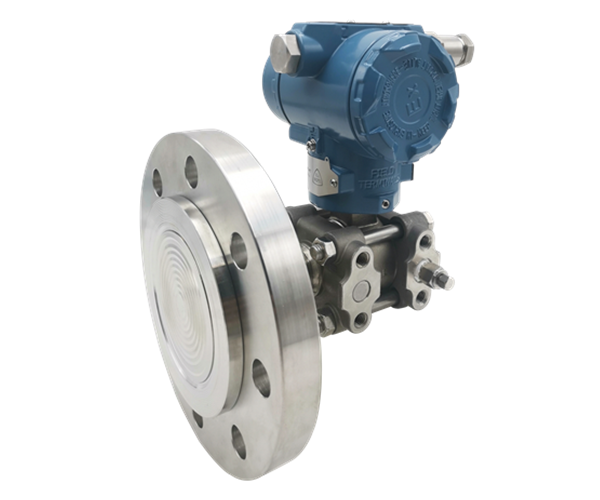

There are various types of pressure sensors and transmitters that can be used for liquid level measurement. These include submersible pressure sensors, which are designed to be immersed in the liquid, and non-submersible pressure transmitters, which are installed externally on the tank or vessel. Both types of sensors work by converting the hydrostatic pressure of the liquid into an electrical signal that can be measured and used for level measurement.
The installation of a pressure sensor for liquid level measurement is a straightforward process. The sensor is typically mounted at the bottom of the tank or vessel, where it can accurately measure the hydrostatic pressure exerted by the liquid. The electrical signal from the sensor is then sent to a controller or display unit, where it is converted into a level measurement. This measurement can be displayed in various units such as inches, feet, meters, or percentage of tank capacity, depending on the requirements of the application.
One of the key benefits of using a pressure sensor for liquid level measurement is its accuracy and reliability. Unlike some other level measurement methods, pressure sensors are not affected by factors such as temperature, viscosity, or foam, and can provide consistent and precise level readings. This makes them suitable for a wide range of liquid and tank types, including those containing corrosive or hazardous substances.
The use of pressure sensors and transmitters for liquid level measurement is a proven and effective approach for various industrial applications. Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a Chinese high-tech enterprise level company specializing in process automation technology and products for over 20 years. We can supplie cost-effective and reliable both submersible and external mounted pressure transmitters with level measurement design. Feel free to contact us for further information.
