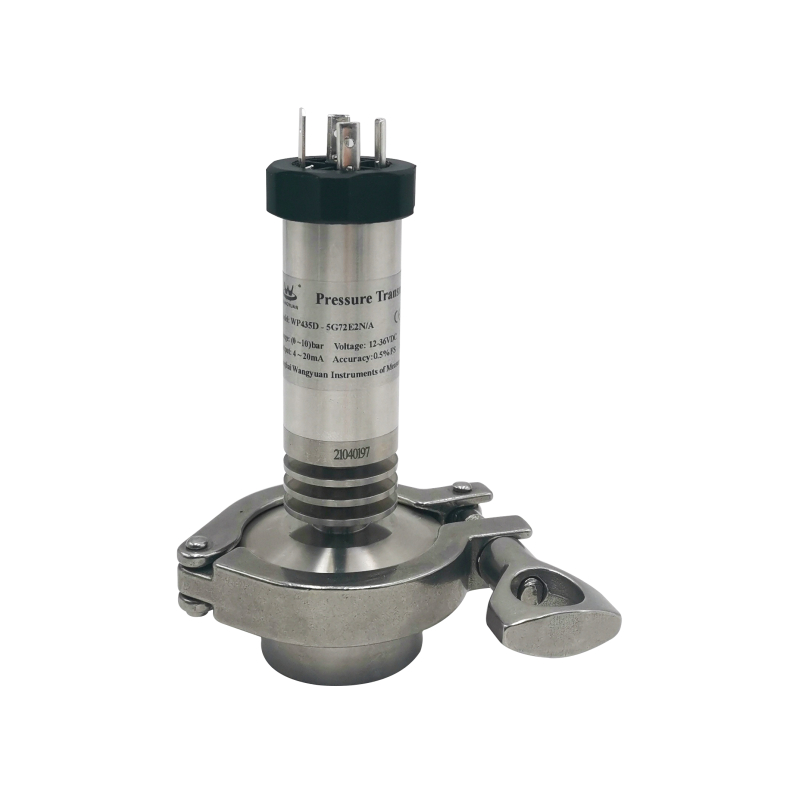

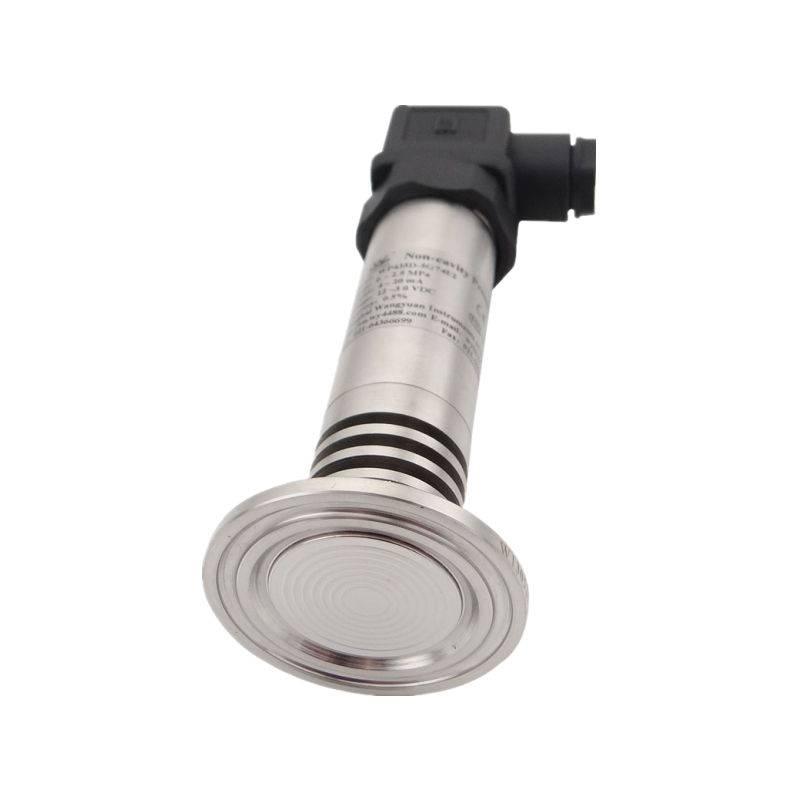

WP435D Pem Hauv Ntej corrugated diaphragm Siab transmitter tsim rau Daim Ntawv Thov Khoom Noj
WP435D Pem Hauv Ntej corrugated diaphragm siab transmitter dav siv los ntsuas thiab tswj siab rau ntau yam kev lag luam, suav nrog cov khoom noj khoom haus & dej haus, cov nroj tsuag qab zib, Kev kuaj kev lag luam thiab kev tswj hwm, kev siv tshuab, tsim kho tshuab thiab lub plawv hniav & ntawv.
WP435D Pem Hauv Ntej corrugated diaphragm siab transmitter yog tshwj xeeb tsim rau daim ntawv thov zaub mov noj, nws lub siab-tawv diaphragm yog nyob rau pem hauv ntej kawg ntawm cov xov, lub sensor yog nyob rau sab tom qab ntawm lub taub dej kub, thiab siab-ruaj tau siv cov roj silicone siv raws li lub siab xa mus rau hauv nruab nrab. Qhov no ua kom muaj kev cuam tshuam ntawm lub siab kub thaum lub sijhawm ua khoom noj fermentation thiab siab kub thaum ntxuav tu ntawm lub tshuab xa khoom. Lub ntsuas cua siab xa tawm yog xaiv, cov hlau txhuas xaim yog qhov roj-txoj kab hluav taws xob, thiab cov pa roj nplaum txuas ntxiv rau ntawm ob qhov kawg ntawm lub cable kom tsis txhob hws tawm thiab lwg los cuam tshuam rau kev ua haujlwm ntawm lub hauv ntej corrugated diaphragm siab transmitter. WP435D Lub Siab Hloov Tawm yog tsim nyog ntsuas thiab ntsuas lub siab nyob hauv txhua hom kev yoojyim txhaws, huv, huv huv, yooj yim rau huv ib puag ncig. Nrog cov yam ntxwv ntawm kev ua haujlwm siab, lawv kuj haum rau kev ntsuas ntsuas.
Ntau lub teeb liab outputs
HART raws tu qauv yog muaj

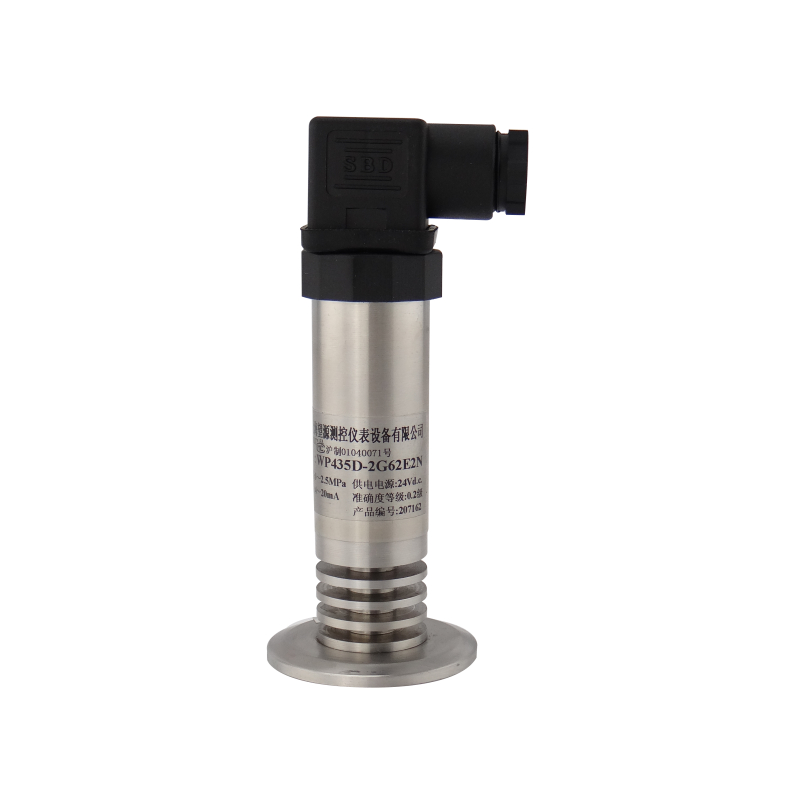

Tso dej pluaj diaphragm, corrugated diaphragm, tri-clamp
Kev ua haujlwm kub: 150 ℃
Kev xaiv zoo tshaj plaws rau Huv, muaj menyuam tsis taus, daim ntawv thov tu yooj yim
LCD lossis LED yog qhov teeb tsa tau
Tawg-pov thawj hom: Ex iaIICT4, Ex dIICT6
| Npe | Hauv ntej corrugated diaphragm siab transmitter tsim rau daim ntawv thov khoom noj |
| Qauv | WP435C |
| Siab ntau yam | 0－-10 ～ -100kPa, 0－10kPa ~ 100MPa. |
| Qhov Raug Yog | 0.1% FS; 0.2% FS; 0,5% FS |
| Siab yam | Tag huv siab (G), Kev Kub Siab (A),
Kaw siab (S), Siab tsis zoo (N). |
| Cov txheej txheem sib txuas | G1 / 2 ”, M20 * 1.5, M27x2, G1”, Mekas |
| Hluav taws xob txuas | Hirschmann / DIN, Ntsaws Aviation, Gland cable |
| Tso zis teeb liab | 4-20mA (1-5V); 4-20mA + HART; RS485, RS485 + 4-20mA; 0-5V; 0-10V |
| Lub hwj chim muab | 24V DC; 220V AC, 50Hz |
| Nyiaj them rau qhov kub thiab txias | -10 ～ 70 ℃ |
| Nruab nrab kub | -40 ~ 150 ℃ |
| Kev ntsuas nruab nrab | Nruab nrab sib xyaw nrog steel hlau 304 lossis 316L lossis 96% alumina ceramics; dej, mis, ntawv hmoov, npias, qab zib thiab lwm yam. |
| Tawg-pov thawj | Kev nyab xeeb nyab xeeb Ex iaIICT4; Nplaim taws kev nyab xeeb Ex dIICT6 |
| Khoom siv lub plhaub | SUS304 |
| Diaphragm khoom siv | SUS304 / SUS316L, Tantalum, Hastelloy C, PTFE, Cov Khoom Siv Ceramic |
| Qhov taw qhia (cov khoom hauv zos) | LCD, LED |
| Tshaj siab | 150% FS |
| Kev ruaj khov | 0,5% FS / xyoo |
| Yog xav paub ntxiv txog Cov Pem Hauv Ntej no corrugated diaphragm Siab hloov chaw, thov koj xav tiv tauj peb. | |
